Frame reinforcement & screw kit
244,31 € 244,31 €
incl. 20% VAT plus shipping costs
JAY PARTS frame reinforcement & screw kit Polaris Sportsman & Polaris Scrambler
Frame reinforcement kit 12 pieces + Jay Parts screw kit for Polaris Polaris Sportsman and Scrambler 850 / 1000 steel S355 black coated
Oval holes, bent tabs, broken frames are a thing of the past with the kit!

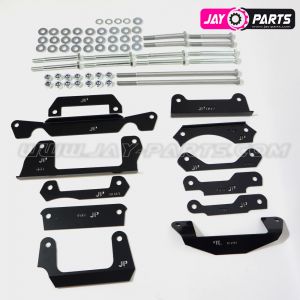

DELIVERY PER KIT:
- 12 x reinforcement plates steel S355 with KTL coating
- 14 x screws 8.8 galvanized and 10.9 geomet
- 14 x nuts
- 28 x washers M10
Availability : in stock
In stock (can be backordered)
JAY PARTS frame reinforcement + screw kit
Frame Reinforcement Kit 12 pieces + Jay Parts Screw Kit for Polaris Sportsman and Scrambler 850/1000 with KTL coating.
The kit strengthens spots and fracture vulnerable areas with 3mm thick plates.
"Oval holes, bent tabs, broken frames are a thing of the past with the kit!"
Including Jay Parts screw kit - original screws are too short!
MATERIAL:
- 3mm steel with KTL coating
LIEFERUMFANG:
12 x reinforcement plates
14 x screws 8.8 galvanized and 10.9 geomet
14 x nuts
28 x washers M10
2 x washers for compensation/distancing
WORKS WITH THE FOLLOWING MODELS
Polaris Scrambler 850/1000 2013 -
Polaris Sportsman 850/1000 2009 -
Assembly instrucions
FRAME REINFORCEMENT + SCREW KIT

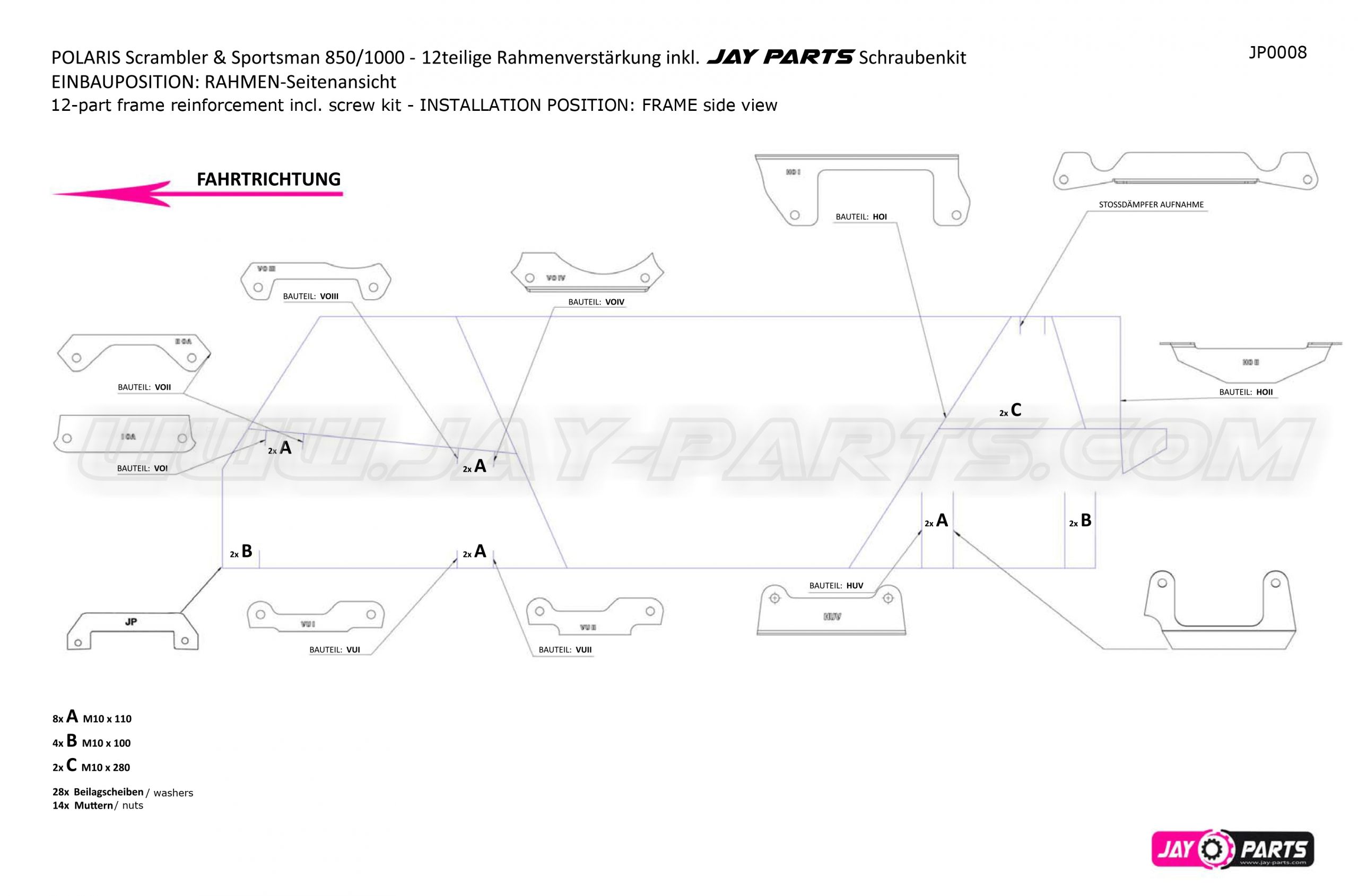

With the included plan you can determine where each reinforcement plate should be placed and installed. You can also see which screws should be used where
However, I would like to say a few words about the Jay Parts screw kit.

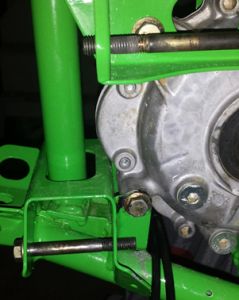

Originally the screws are unfortunately too short and rub the thread in the frame oval holes and damage the frame (see photo with green frame).
We measured a special screw kit for this.
Unfortunately, we also have to adhere to standards. However, we make sure that the shaft of the screw is guided in the frame guides.
With the 4mm washers, we have additional reinforcement on the one hand and a guide to avoid oval holes on the other hand or react well to them if they already exist.
Due to the measure, the screws appear too long. You can cut off the excess thread (for the sake of appearance) but consider; that the screws can also rust.
IMPORTANT:
Don’t forget to grease the vehicle after assembly!
Also grease the screws so that they are protected against corrosion in the long term.
DREHMOMENT:
- Front axle 54 NM
- Rear axle 61 NM
