Bearing clamp steering Polaris Scrambler S & Sportsman S
153,04 € 153,04 €
incl. 20% VAT plus shipping costs
JAY PARTS bearing clamp steering Polaris Scrambler 1000 S & Polaris Sportsman 1000 S
for the original Polaris steering stem

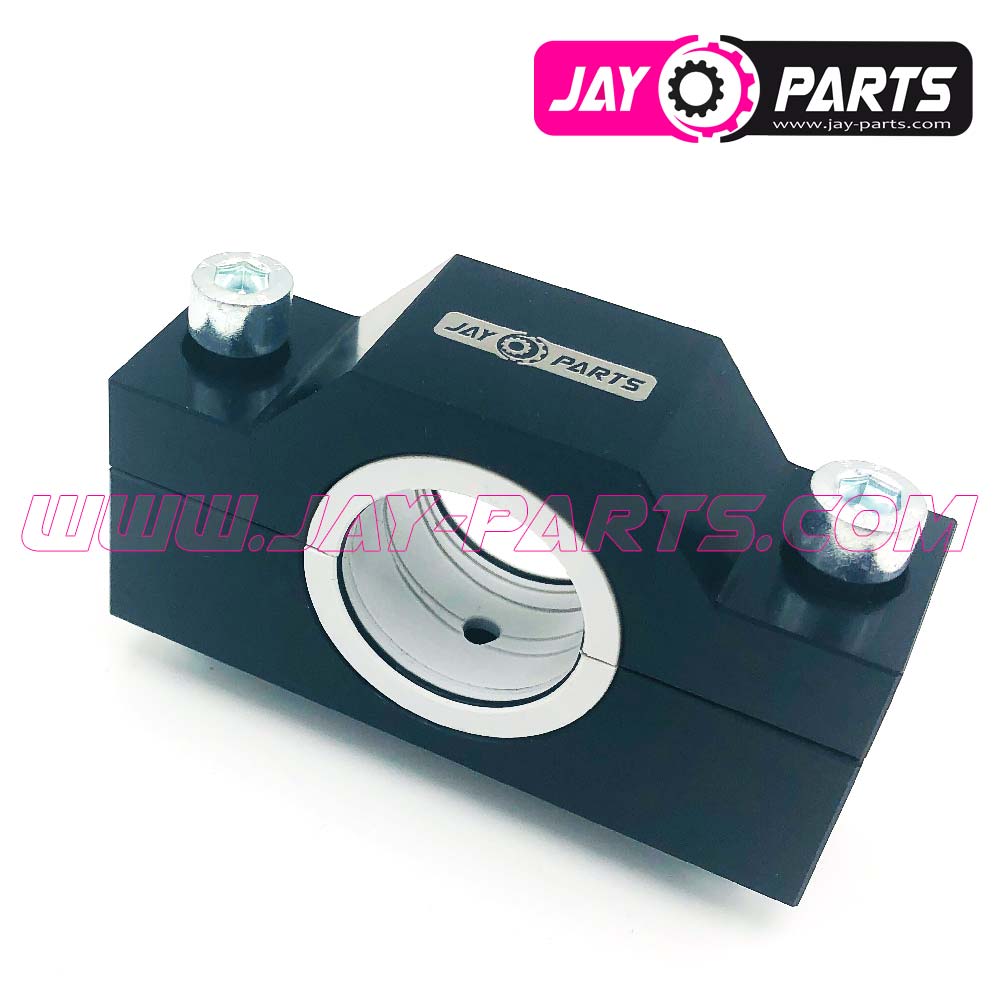

- aluminum bearing clamp
- highly abrasion-resistant and self-lubricating plastic bushing
- greasing possible
- minimized wear
- increased stability and safety
- sealed with O-rings
Simply ingenious is our combination of our stable aluminium bearing clamp with special bushing made of a highly abrasionresistant and self-lubricating plastic with a spiral groove. Thus the grease is optimally distributed over the whole bearing surface via the grease nipple . So water and dust is prevented to go in.
RECOMMENDATION: Replace already with a new vehicle to avoid drying out of the original bushing and increased wear!
Availability : in stock
In stock (can be backordered)
JAY PARTS bearing clamp Polaris Scrambler 1000 S / Polaris Sportsman 1000 S
Our combination of a heavy duty bearing clamp with special bushing made of a highly abrasion-resistant and self-lubricating plastic with a helical groove is simply ingenious. The grease can be optimally distributed over the entire bearing surface via a grease nipple and the ingress of water and dust can be prevented.
IMPORTANT
If the bearing surface of the steering column is already worn (metal abrasion is present), our system does not improve either. Here we also recommend a new steering stem.
FEATURES
- aluminum bearing clamp
- highly abrasion-resistant and self-lubricating plastic bushing
- sealed with O-rings against water and dirt
- greasing possible
- minimized wear
- increased stability and safety
- best possible material
Replaces original part numbers: 5262582 + 5438904

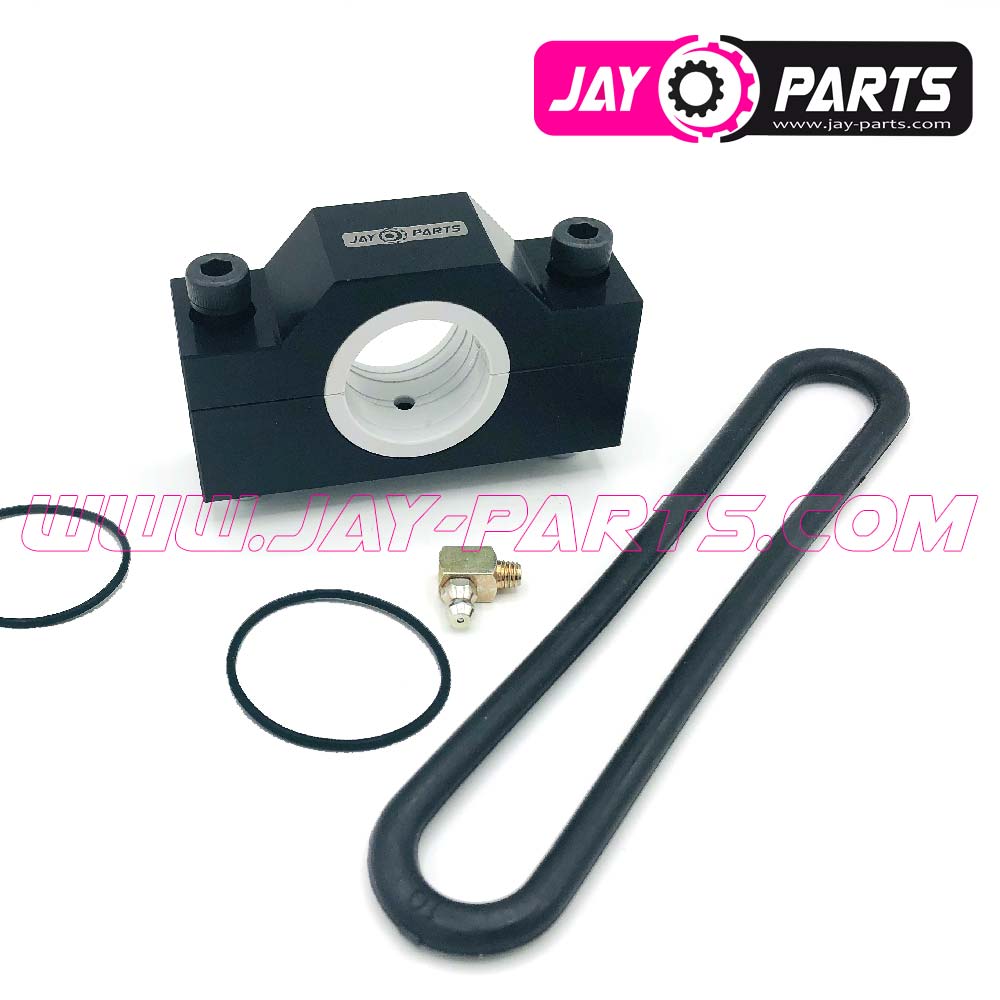

DELIVERY
- bearing clamp
- bushing
- screws & nuts
- grease nipple
- rubber to fix ECU
- 2 O-rings
Polaris Scrambler 1000 S 2020-
Polaris Sportsman 1000 S 2020-
ATTENTION
When greasing, only apply grease until the first resistance is detected at the grease gun. Grease must not ooze out! If grease swells out, the O-ring is damaged and the seal against water/dirt is no longer given!
Assembly instructions
BEARING CLAMP STEERING
POLARIS SCRAMBLER 1000 S / POLARIS SPORTSMAN 1000 S
We recommend professional installation at one of our Flagshipstore Partners!
The following tips are for self-assembly!
For mounting the bearing clamp steering:
- we recommend the remove oft he front cover
- remove the 2 screws of the fuse box

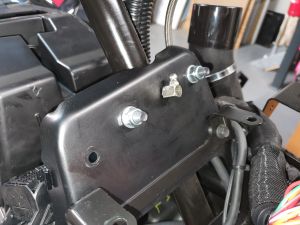

- remove the 2 crews oft he ECU mounting plate (control unit) from the frame
- the mounting plate is no longer installed, so remove it from the ECU

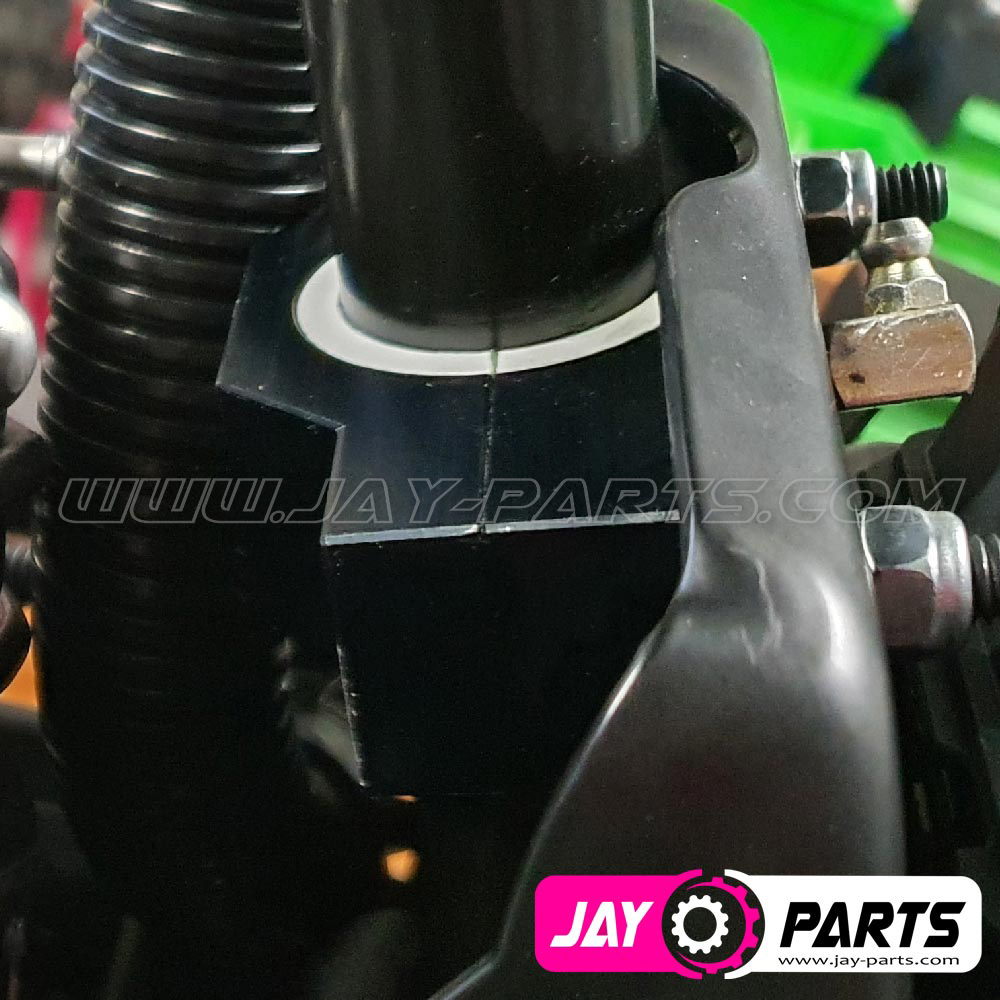

remove the 2 screws oft he original bushing holder and remove it- to insert the Jay Parts bearing clamp steering release the steering column, do not exert too much pressure on the steering column
- when mounting the bearing clamp steering use sufficient water-resistant grease in the bushing
- make sure that the 2 seals are in the intended groove and are not jammed or twisted in any other place

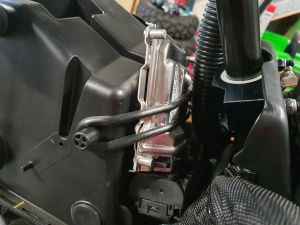

- to install the ECU, use the supplied rubber to clamp the ECU onto the airbox
- to install the grease nipple, use the hole provided by Polaris. The supplied grease nipple has a self-tapping thread (no thread cutting necessary).
When assembling, make sure that no cables are clamped and that all components are mounted without tension.
Torque M8 screws: 25 NM
Torque M5 screws: 7 NM
RECOMMENDATION
For lubrication we recommend BEL RAY Waterproof Grease, the best grease to protect the bearing points on your entire vehicle. You can also find in our shop.
NOTE
If the steering is stiff after the mounting the new bearing clamp steering, loosen the nuts by half a turn.
IMPORTANT
If the surface oft he steering stem is already closed (there is metal abrasion), our system does not improve either. We recommend a new steering stem.
When greasing, make sure that you only apply the grease until the first resistance is detected in the grease gun. Grease must not ooze out! As soon as the grease swells out, the O-ring is damaged and the seal against dirt is no longer given.
WE RECOMMEND INSTALLATION AT THE JAY PARTS FLAGSHIPSTORE PARTNERS, AS THE WORK SHOP EMPLOYEES ARE WELL TRAINED!
